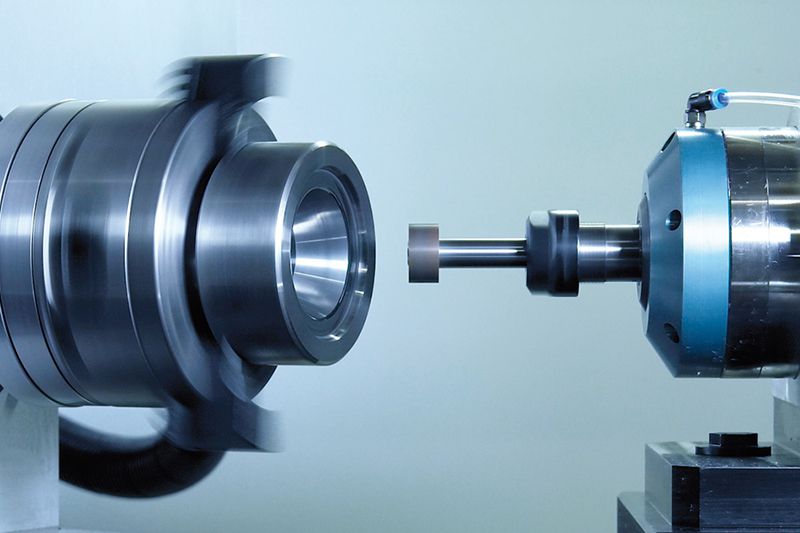

Internal Grinding Machines
-
-
Since 1955, MOUTON RIVOM has been designing and manufacturing internal grinding machines dedicated to the machining of tungsten carbide dies and drawing dies. Our long experience and know-how enable us to supply robust, easy-to-use, reliable and safe automated machines.
All our machines comply with the requirements of the Machinery Directive 2006/42/EC (CE marking) and are exported worldwide.

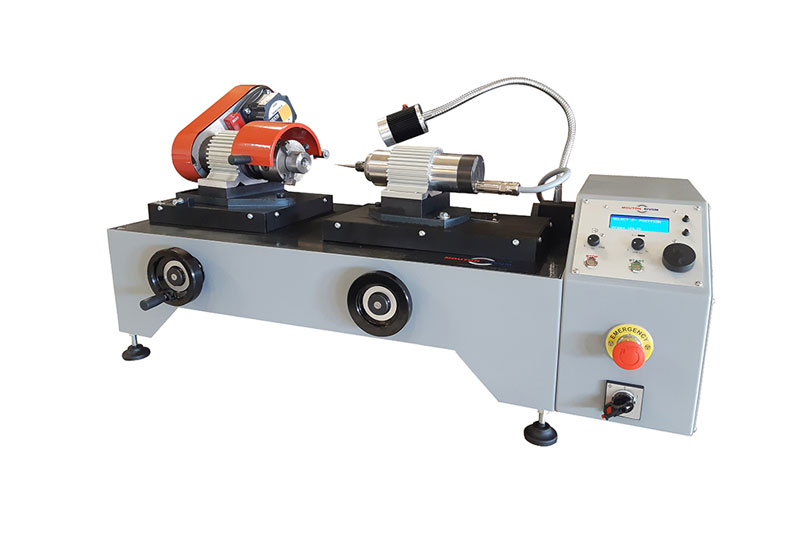

Semi-automatic horizontal internal grinding machine
Machine with automatic grinding pass from Ø0.8mm to Ø20mm
- Easy to use thanks to its simplified controlling device
- Accuracy: 0,01mm
- Operation repetition
- Angular inclination up to 40°
- Diameters up to 20mm
- High frequency spindle up to 24 000rpm
- Holding capacity: 80 – 100mm
- Working length: 30mm

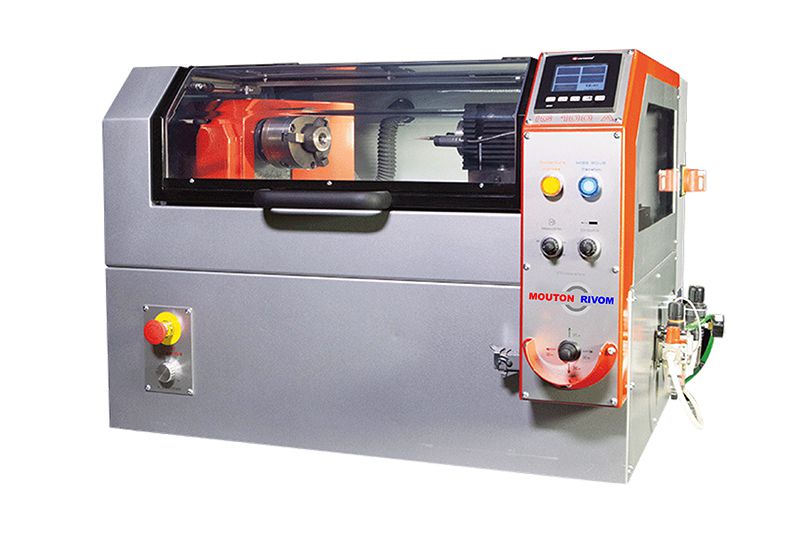

Automatic horizontal grinding machine
Machine with automatic grinding pass and digital automatic angle motion from ø0.8mm
- Chuck ø100mm
- Program management by computer numerical control
- For dies from ø0.80 to ø30mm
- Machine precision: 5μm
- Angle precision: ±30’’
- New motorized lead angle system (0° to 75°)
- Axis management by stepping motor control allowing an advance in micron
- Memorizing of 5 operations in « learn » mode on the first die
- Repeat of the memorized operations to reproduce an identical profile
- Various spindle types available - depending on material and diameters to be ground
- Classic version without outer casing
Automatic horizontal grinding machine
Machine with automatic grinding pass and digital automatic angle motion from Ø0.8mm
- Chuck Ø100 mm
- Program management by computer numerical control
- For dies from ø0.80 mm to ø30 mm
- Machine precision: 5μm
- New motorised lead angle system (0 to 75°)
- Angle precision: ±30’’
- Easy to use
- Axis management by stepping motor allowing an advance in micron
- Memorising of 5 operations in «learn» mode on the first die
- Repeat of the memorised operations to reproduce an identical profile
- Various spindle types available - depending on material and diameters to be ground
- Totally ducted working area for the user’s safety

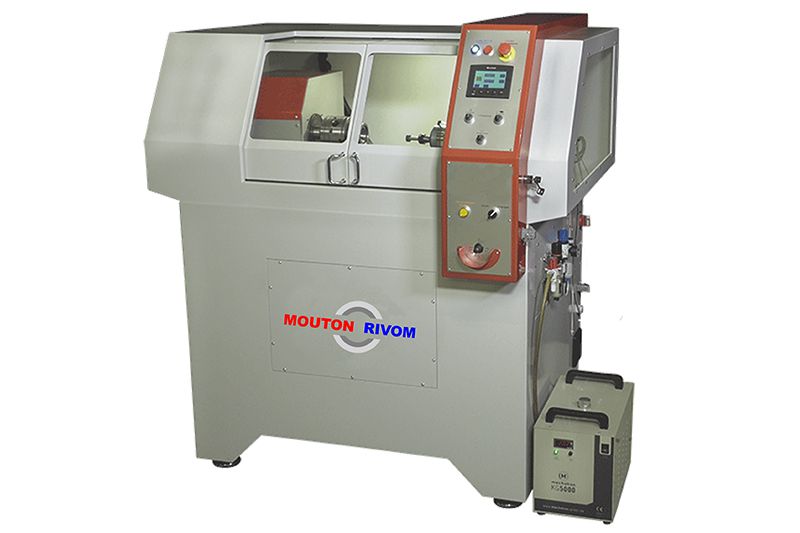

Automatic horizontal wet grinding machine
High-precision machine able to perform several operations
- Chuck Ø125 mm or Ø160mm
- Program management by computer numerical control
- For dies up to ø70 mm
- Machine precision: 5μm
- Easy to use
- Axis management by stepping motor allowing an advance in micron
- Memorising of five operations in «learn» mode on the first die
- Motorised lead angle (0 to 75°)
- Angle precision: ±30’’
- Repeat of the memorised operations to reproduce an identical profile
- Various spindle types available - depending on material and diameters to be ground
- Totally ducted working area for the user’s safety
